M12 Circular ConnectorsThreaded Circular Connectors

M12 Circular Connectors

480 published SKUs

M12 Circular Connectors product range.

017 product types

Product Types

M12-ASSEMBLY-PLUG

M12 Assembly Plug

●IP Rating: IP67 / IP68
●Rated Voltage: 30 / 50 / 60 / 63 / 250 / 630 V
●Rated Current: Varies by SKU
●131 variants

View →

M12-MOLDING-CABLE-PLUG

M12 Molding Cable Plug

●IP Rating: IP67 / IP68
●Rated Voltage: 30 / 50 / 60 / 63 / 250 / 630 V
●Rated Current: Varies by SKU
●66 variants

View →

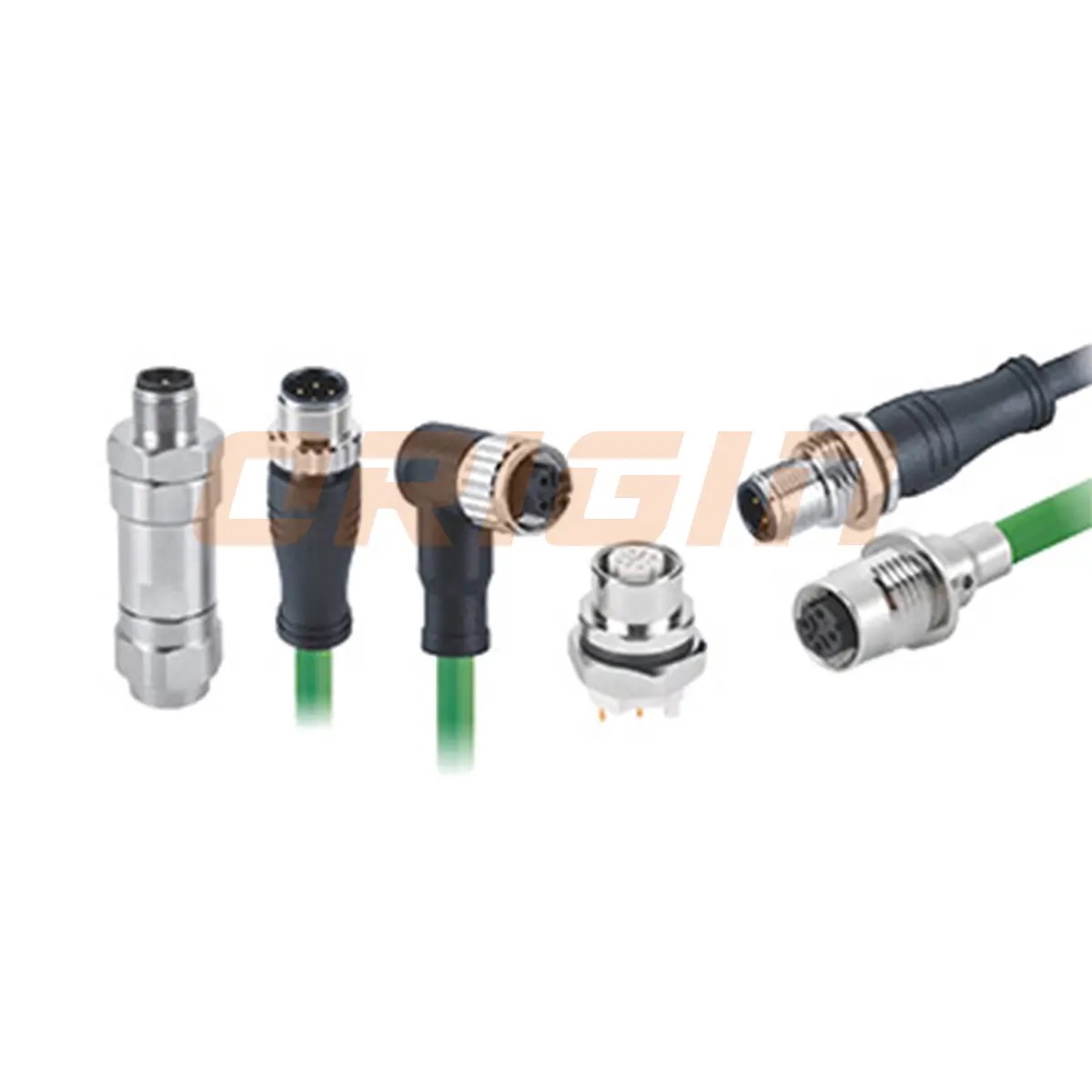

M12-MOLDING-CABLE-PLUG-WITH-SHIELD

M12 Molding Cable Plug (With Shield)

●IP Rating: IP67 / IP68
●Rated Voltage: 30 / 50 / 60 / 63 / 250 / 630 V
●Rated Current: Varies by SKU
●60 variants

View →

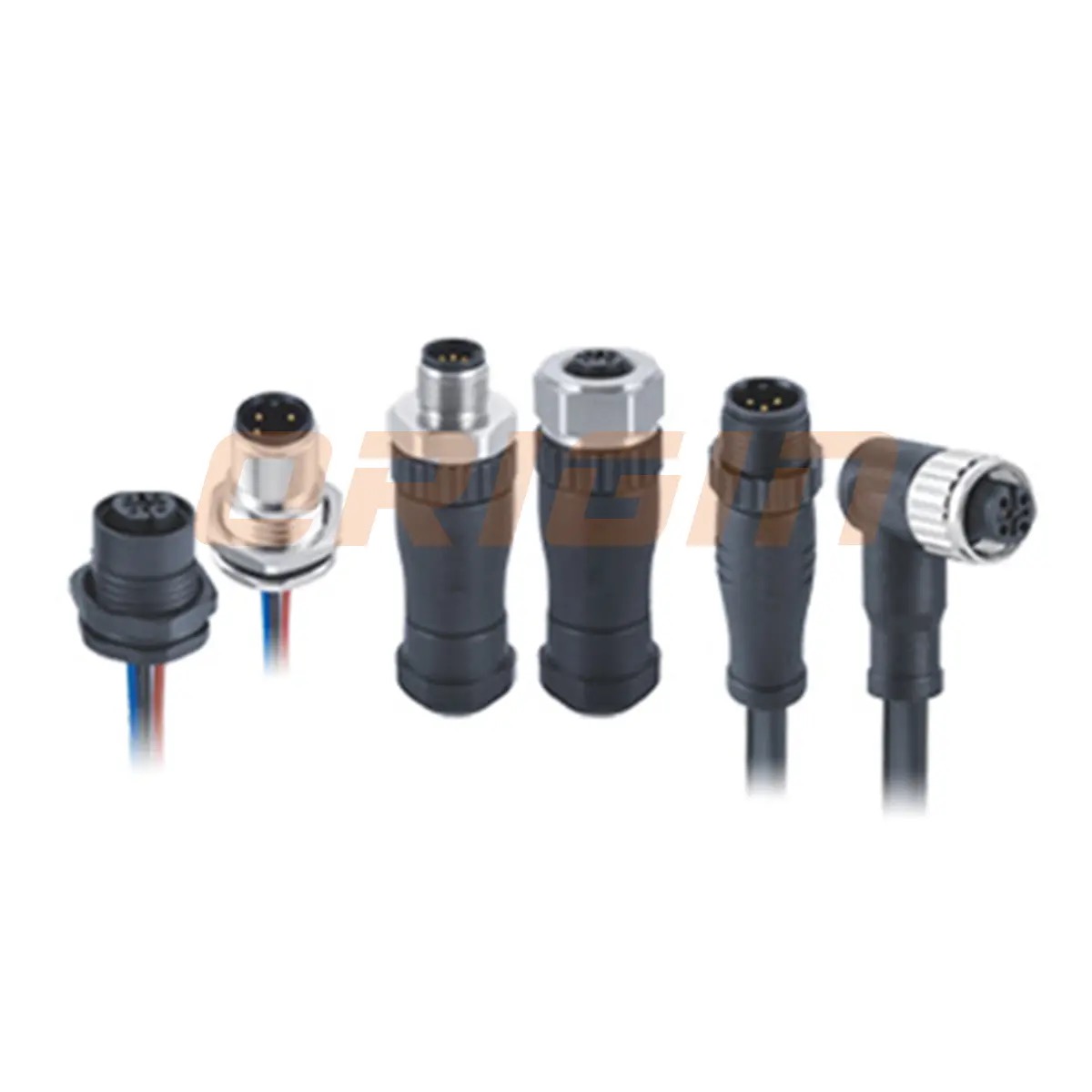

M12-PANEL-MOUNT-SOCKET

M12 Panel Mount Socket

●IP Rating: IP67 / IP68
●Rated Voltage: 30 / 50 / 60 / 63 / 250 / 630 V
●Rated Current: Varies by SKU
●193 variants

View →

M12-SMT-SOCKET

M12 SMT Socket

●IP Rating: IP67 / IP68
●Rated Voltage: 30 / 60 / 250 V
●Rated Current: 1.5 / 2 / 4 A
●8 variants

View →

M12-THR-SOCKET

M12 THR Socket

●IP Rating: IP67 / IP68
●Rated Voltage: 30 / 60 / 250 V
●Rated Current: 1.5 / 2 / 4 A
●14 variants

View →

M12-THT-SOCKET

M12 THT Socket

●IP Rating: IP67 / IP68
●Rated Voltage: 30 / 60 / 250 V
●Rated Current: 2 / 4 A
●8 variants

View →

02Family datasheet

Full mechanical & electrical

Technical values aggregated from all published SKUs in this series.

SeriesM12 Circular Connectors

Product types7

Total SKUs480

Rated Voltage30 / 50 / 60 / 63 / 250 / 630 V

Rated CurrentVaries by SKU

IP RatingIP67 / IP68

Operating Temperature-25°C to +80°C

Housing MaterialMetal / Plastic

Contact MaterialBrass / Phosphor Bronze

Contact PlatingGold (Au)

Reference StandardIEC 61076-2-101 / IEC 61076-2-109 / IEC 61076-2-111 / IEC 61076-2-113
