Electrical
Rated Voltage
250V
Rated Current
4A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Impulse Voltage
2500 V
Pollution Degree
3
M12 Molding Cable Plug / M12 Circular Connectors

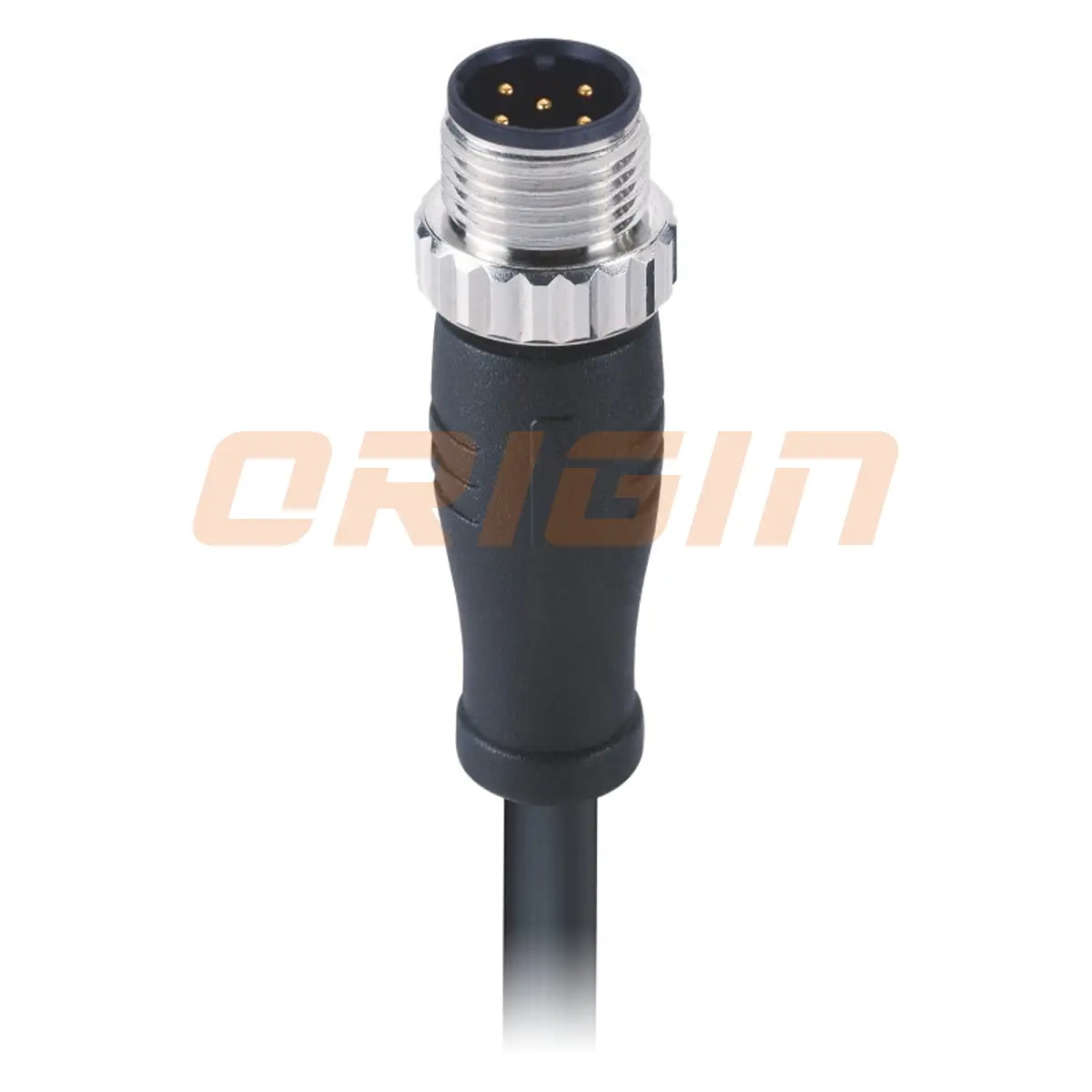

M12 A-Coding Male Straight Molding Cable Plug, 3-Pin
PN 120201030100
250V · 4AIP67/IP68
Configure Your Product
Pin
Coding
Gender
Orientation
Shielding
/ Specifications
Technical Details
Mechanical & Connection
Termination
Moulded On Cable
Shielding
false
Locking System
M12x1.0 Screw Lock
Wire Gauge
0.34 mm² (AWG 22)
Tightening Torque
Recommended: 0.4 Nm; Max: 0.8 Nm
Materials & Environmental
IP Rating
IP67/IP68
Reference Standard
IEC 61076-2-101
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone
Cable Material Options
PUR/PVC
