Electrical
Rated Voltage
250V
Rated Current
4A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Impulse Voltage
2500 V
Pollution Degree
3
M12 Assembly Plug / M12 Circular Connectors

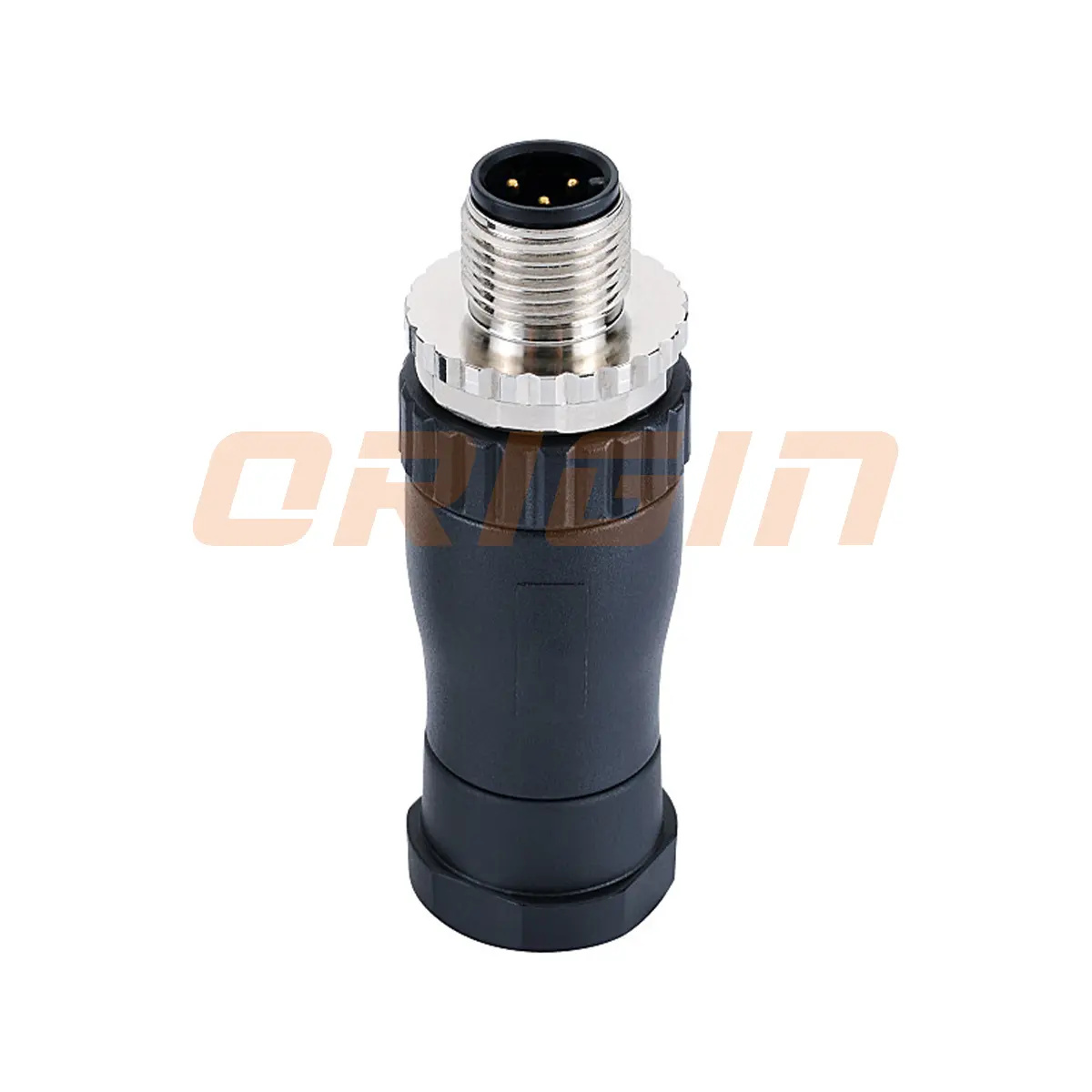

M12 A-Coding Male Straight Plastic Assembly Plug, 3-Pin, 4–8 mm
PN 120101030100
250V · 4AIP67/IP68
Configure Your Product
Pin
Coding
Gender
Orientation
Cable OD
Shielding
Termination
Housing Material
/ Specifications
Technical Details
Mechanical & Connection
Termination
Screw
Shielding
false
Cable OD
4~8mm
Locking System
M12x1.0 Screw Lock
Tightening Torque
Recommended: 0.4 Nm; Max: 0.8 Nm; Wire screw: 0.2 Nm; Cable gland: 0.4-1.0 Nm
Materials & Environmental
Housing Material
Plastic
IP Rating
IP67/IP68
Reference Standard
IEC 61076-2-101
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone
