Electrical
Rated Voltage
60V
Rated Current
3A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Impulse Voltage
1500 V
Pollution Degree
3
M8 Molding Cable Plug / M8 Circular Connectors

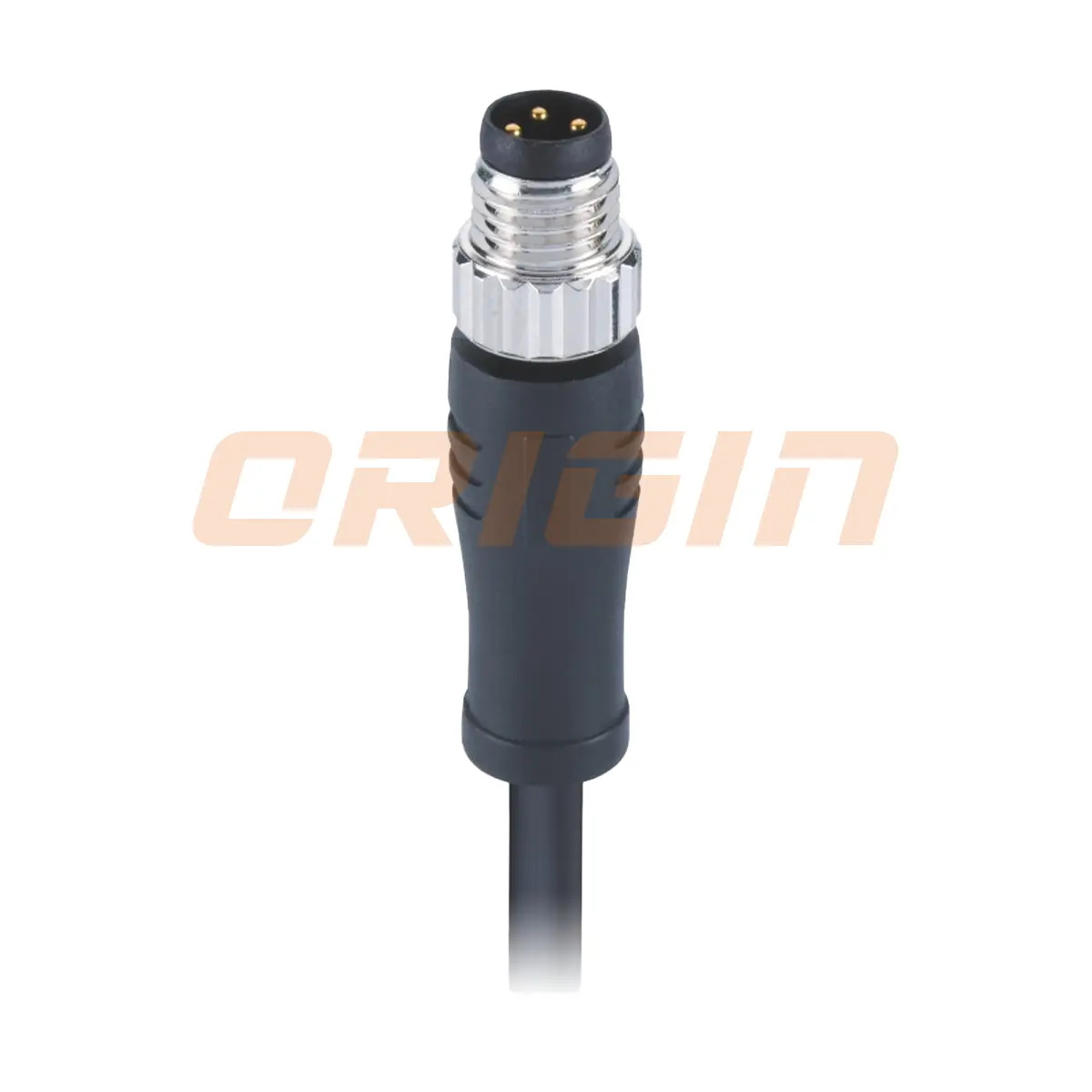

M8 A-Coding Male Straight Molding Cable Plug, 3-Pin
PN 080201030100
60V · 3AIP67/IP68
Configure Your Product
Pin
Coding
Gender
Orientation
Shielding
/ Specifications
Technical Details
Mechanical & Connection
Termination
Moulded On Cable
Shielding
false
Locking System
M8x1.0 Screw Lock
Wire Gauge
0.25 mm² (AWG 24)
Tightening Torque
Recommended: 0.2 Nm; Max: 0.4 Nm
Materials & Environmental
IP Rating
IP67/IP68
Reference Standard
IEC 61076-2-104
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone
Cable Material Options
PUR/PVC
