Electrical
Rated Voltage
60V
Rated Current
3A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Impulse Voltage
1500 V
Pollution Degree
3
M8 Assembly Plug / M8 Circular Connectors
M8 A-Coding Male Straight Plastic Assembly Plug, 3-Pin, 3–4.5 mm
PN 080101030100
60V · 3AIP67/IP68
Configure Your Product
Pin
Coding
Gender
Cable OD
Shielding
Termination
Housing Material
/ Specifications
Technical Details
Mechanical & Connection
Termination
Screw
Shielding
false
Cable OD
3~4.5mm
Locking System

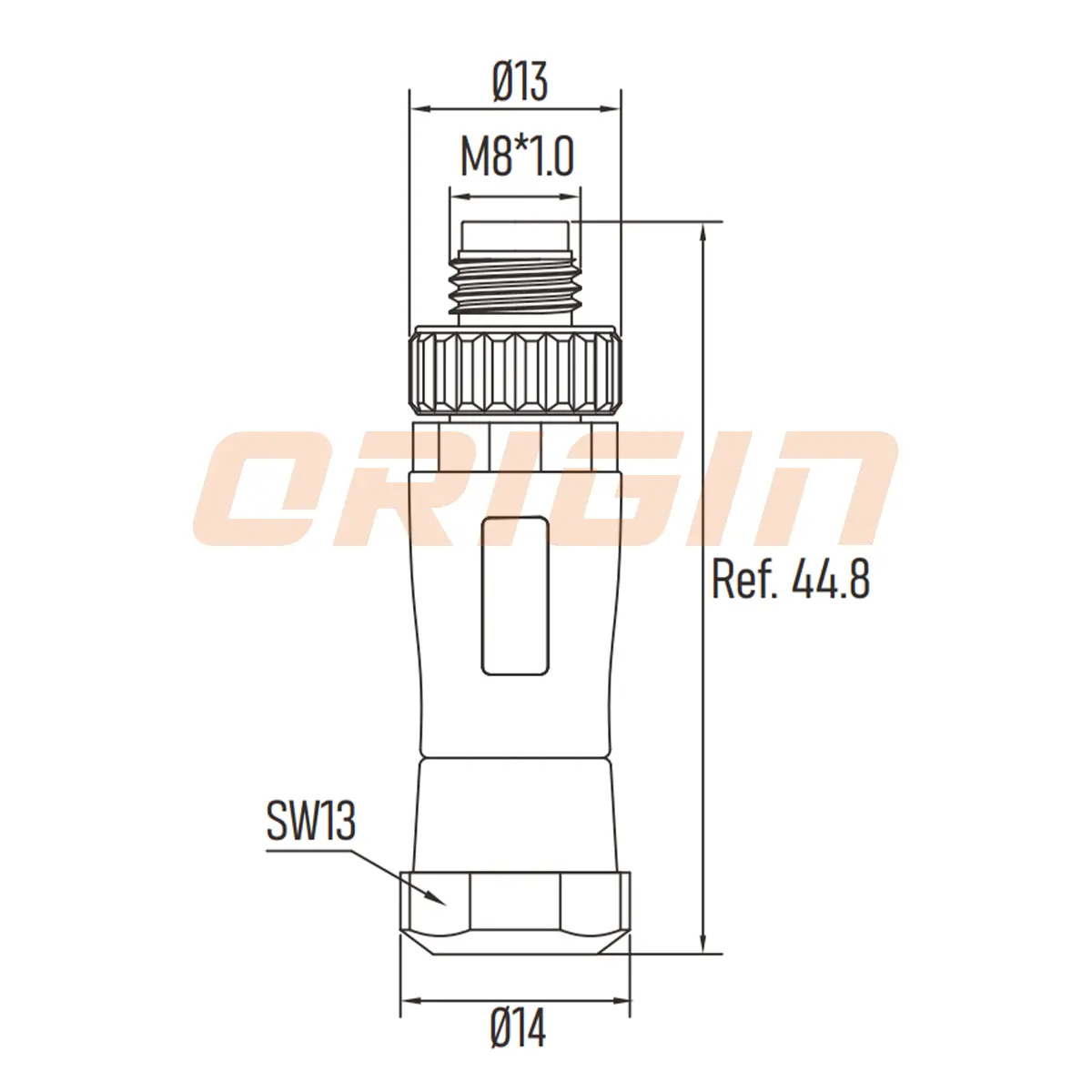

M8x1.0 Screw Lock
Tightening Torque
Connector: recommended 0.2 Nm, max 0.4 Nm; Wire screw: 0.1 Nm; Cable gland: 0.3-0.8 Nm
Materials & Environmental
Housing Material
PA66
IP Rating
IP67/IP68
Reference Standard
IEC 61076-2-104
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone
