Electrical
Rated Voltage
60V
Rated Current
1A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Impulse Voltage
500 V
Pollution Degree
3
M5 Molding Cable Plug / M5 Circular Connectors

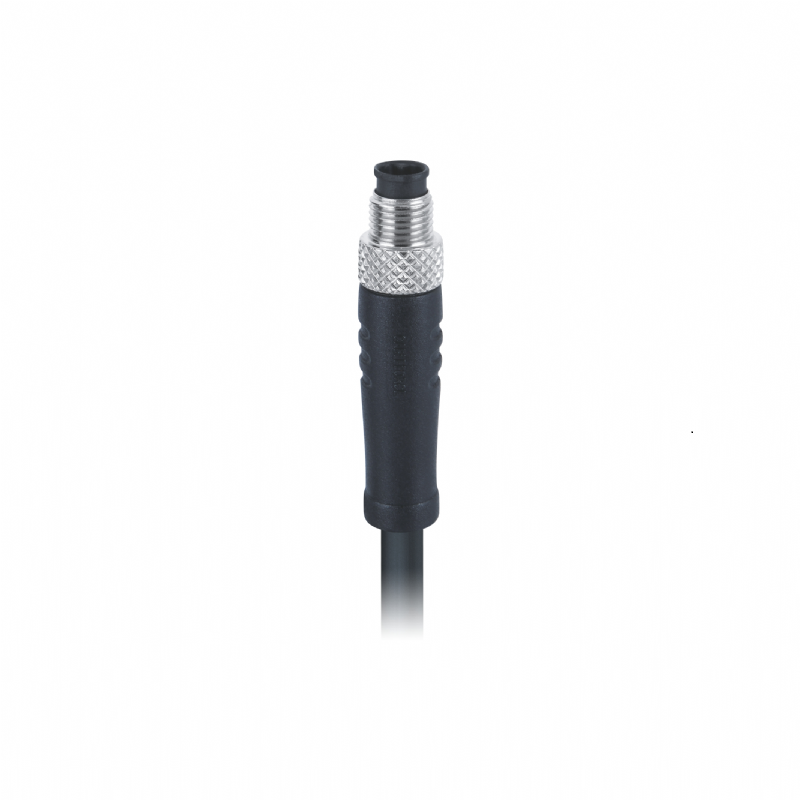

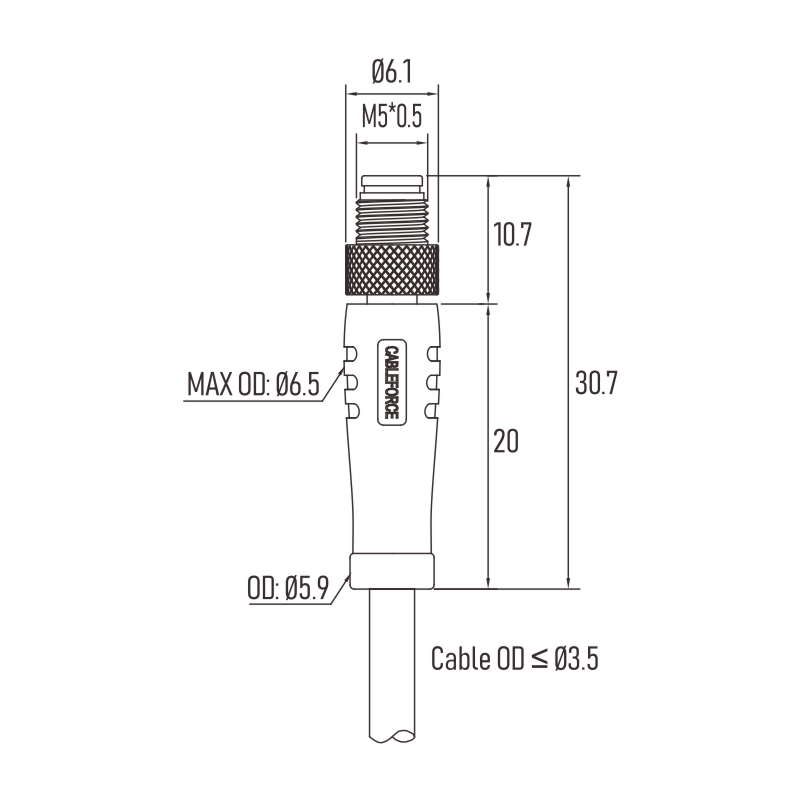

M5 A-Coding Male Straight Molding Cable Plug, 3-Pin
PN 050201030100
60V · 1AIP67/IP68
Configure Your Product

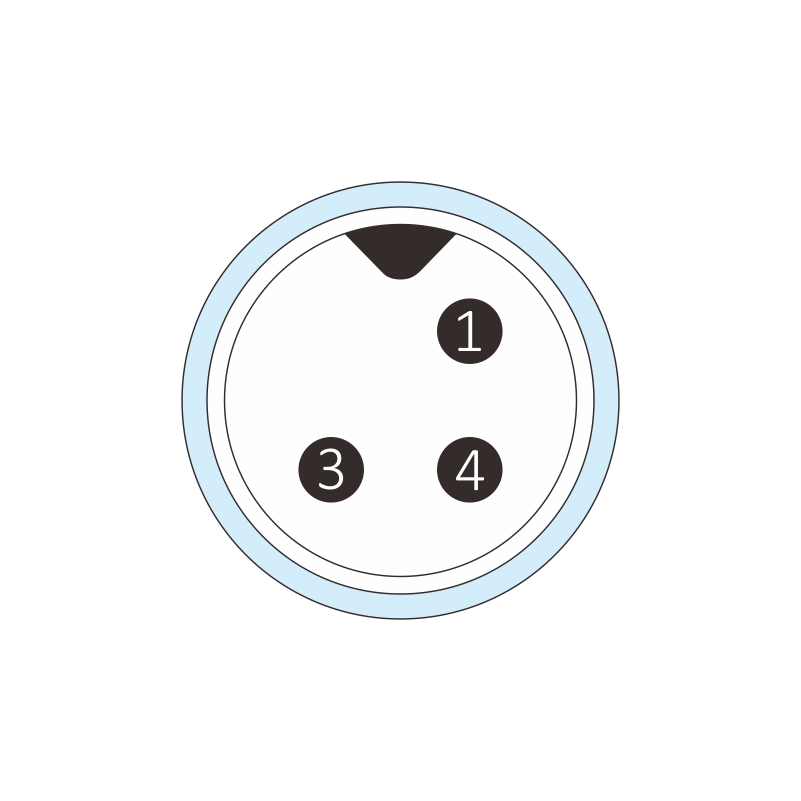

Pin
Gender
Orientation
/ Specifications
Technical Details
Mechanical & Connection
Termination
Moulded On Cable
Shielding
false
Locking System
M5x0.5 Screw Lock
Wire Gauge
0.14 mm² (AWG 26)
Cable Length
As required
Tightening Torque
Recommended: 0.1 Nm; Max: 0.15 Nm
Materials & Environmental
IP Rating
IP67/IP68
Reference Standard
IEC 61076-2-105
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone

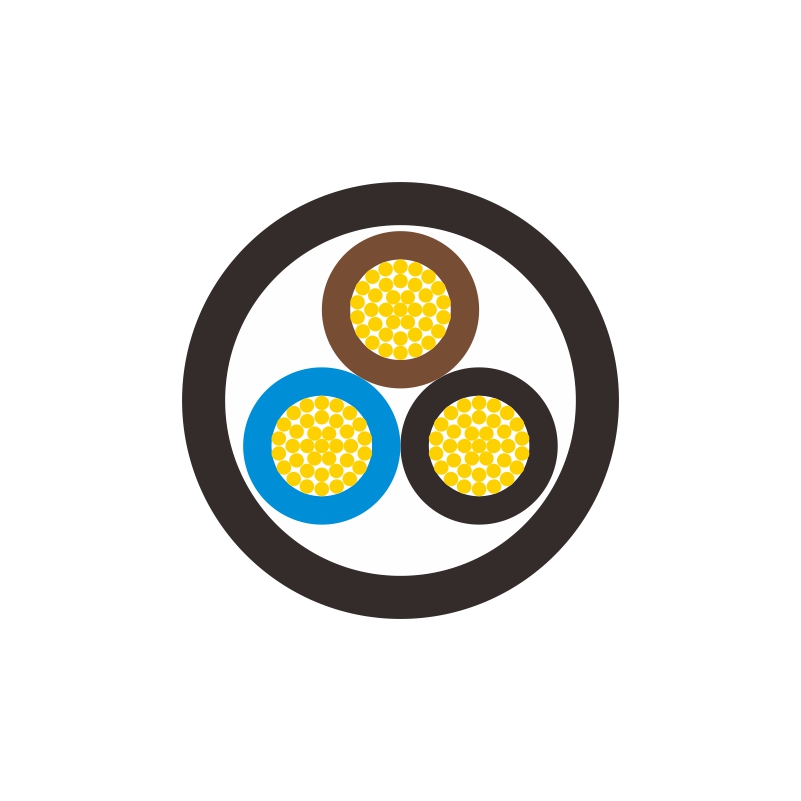

Cable Material Options
PUR/PVC
