Electrical
Rated Voltage
100V
Rated Current
5A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Pollution Degree
3
M16 Molding Cable Plug / M16 Circular Connectors

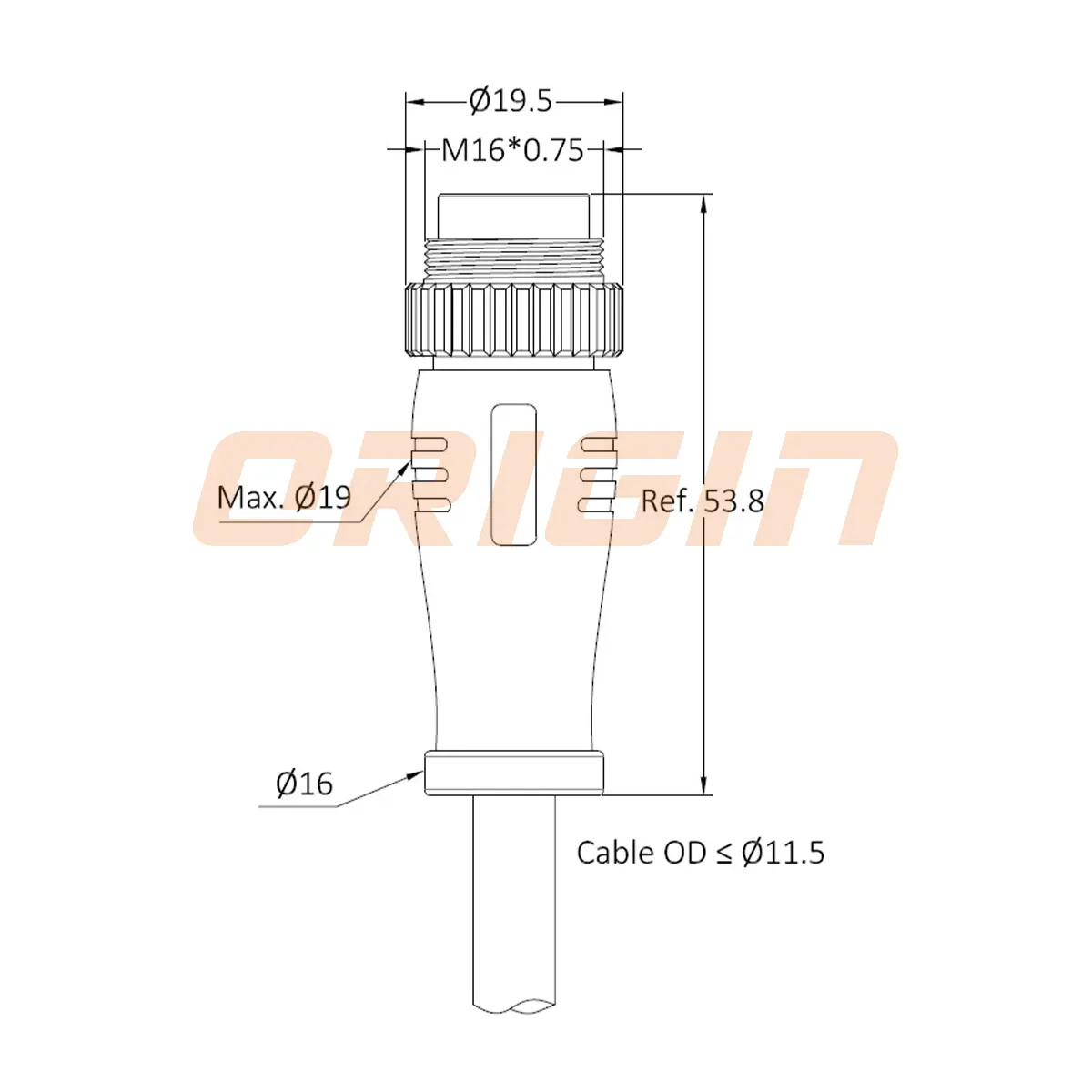

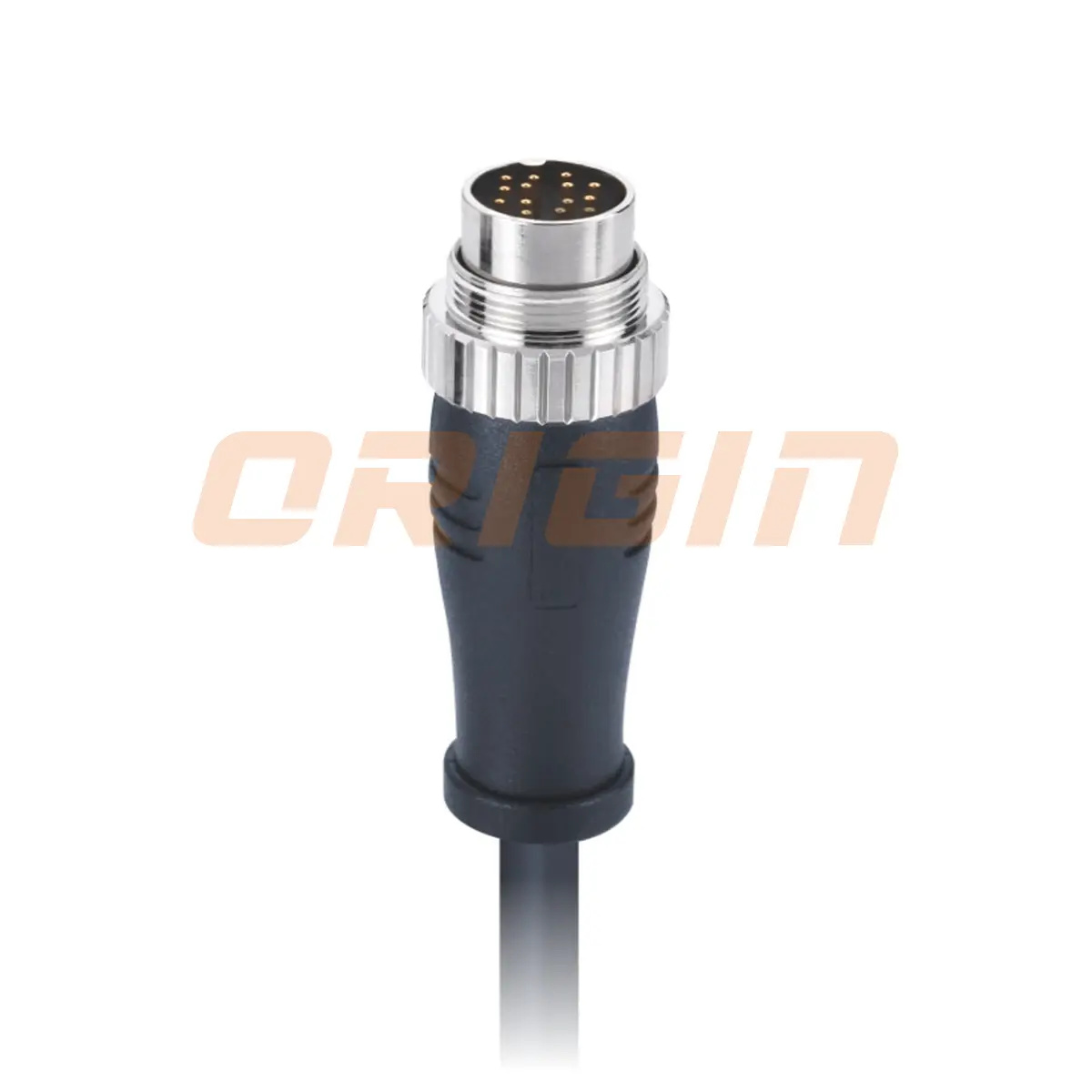

M16 A-Coding Male Straight Molding Cable Plug, 2-Pin
PN 160201020100
100V · 5AIP67/IP68
Configure Your Product
Pin
Gender
/ Specifications
Technical Details
Mechanical & Connection
Termination
Moulded On Cable
Shielding
true
Locking System
M16x0.75 Screw Lock
Wire Gauge
0.5 mm² / AWG 20
Tightening Torque
Recommended: 1.0 Nm; Max: 1.2 Nm
Materials & Environmental
IP Rating
IP67/IP68
Reference Standard
IEC 61076-2-106
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone
Cable Material Options
PUR/PVC
