Electrical
Rated Voltage
100V
Rated Current
5A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Pollution Degree
3
M16 Assembly Plug / M16 Circular Connectors

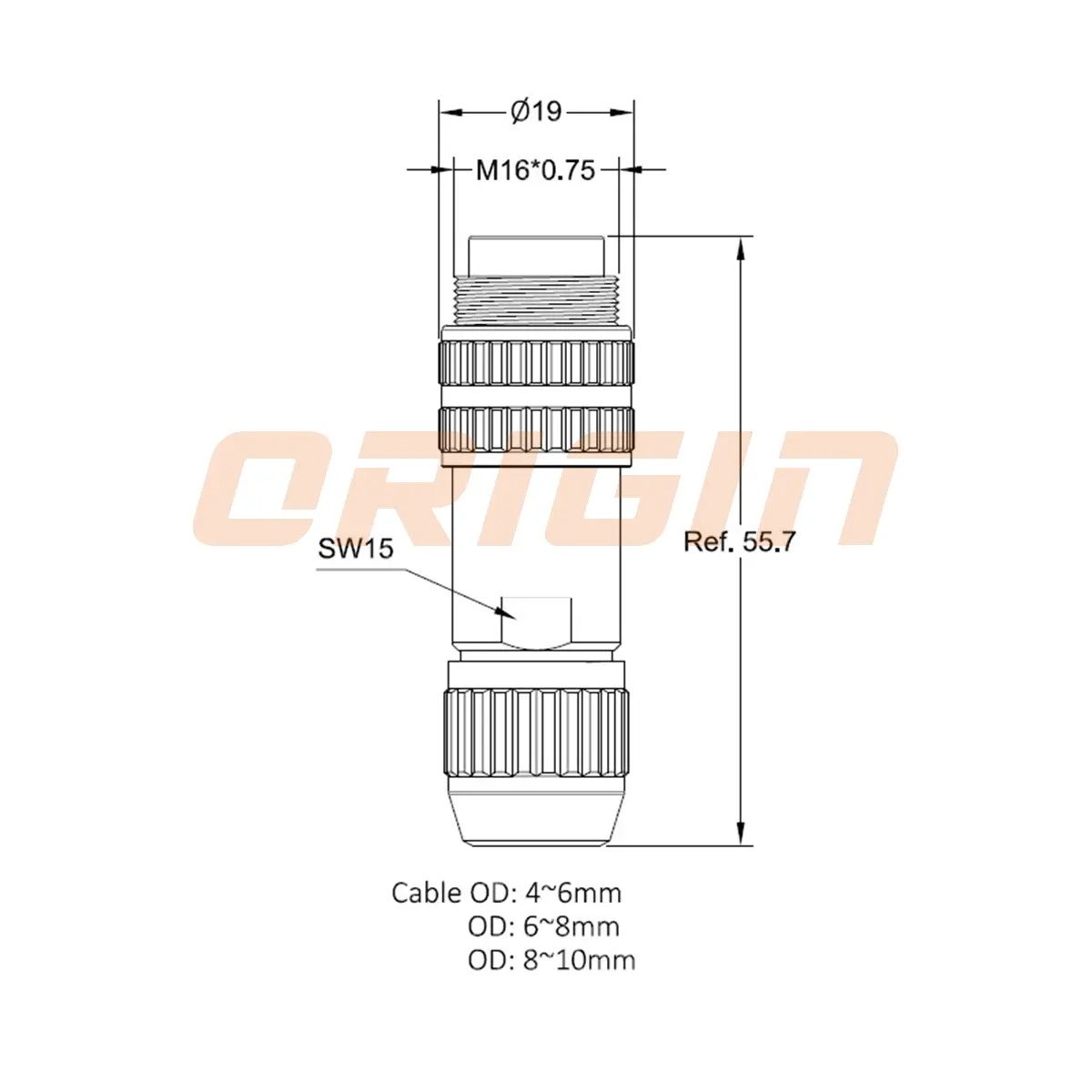

M16 A-Coding Male Straight Metal Assembly Plug, 2-Pin, 5–7.5 mm
PN 160101020100
100V · 5AIP67/IP68
Configure Your Product
Pin
Gender
/ Specifications
Technical Details
Mechanical & Connection
Termination
Solder
Shielding
true
Cable OD
5~7.5mm
Locking System
M16x0.75 Screw Lock
Tightening Torque
Recommended: 1.0 Nm; Max: 1.2 Nm; Wire screw: 0.4 Nm; Cable gland: 0.8-1.2 Nm
Materials & Environmental
Housing Material
Metal
IP Rating
IP67/IP68
Reference Standard
IEC 61076-2-106
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone
