Electrical
Rated Voltage
300V
Rated Current
12A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Impulse Voltage
2500 V
Pollution Degree
3
7/8" Molding Cable Plug / 7/8" Circular Connectors

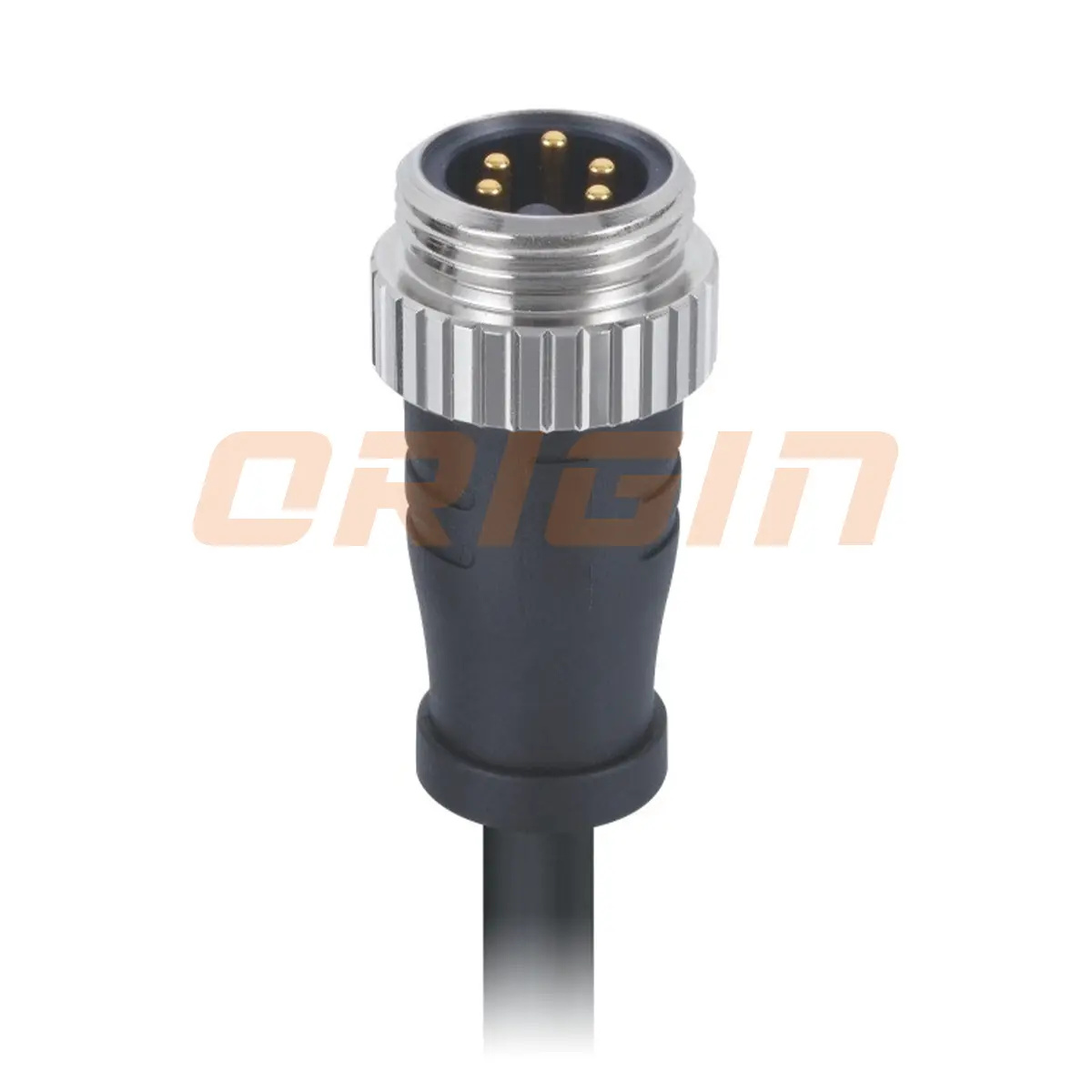

7/8" A-Coding Male Straight Molding Cable Plug, 3-Pin
PN 780201030100
300V · 12AIP67/IP68
Configure Your Product
Pin
Gender
Orientation
Selected PN 780201030100
Voltage
300V
Current
12A
IP Rating
IP67/IP68
Cable
0.75-1.25 mm² / AWG 16-18
/ Specifications
Technical Details
Mechanical & Connection
Termination
Solder
Shielding
false
Locking System
7/8" - 16UN Screw Lock
Wire Gauge
0.75-1.25 mm² / AWG 16-18
Tightening Torque
Recommended: 1.5 Nm; Max: 2.0 Nm
Materials & Environmental
IP Rating
IP67/IP68
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone
Cable Material Options
PUR/PVC
