Electrical
Rated Voltage
300V
Rated Current
12A
Insulation Resistance
≥100MΩ
Contact Resistance
≤3mΩ
Pollution Degree
3
7/8" Assembly Plug / 7/8" Circular Connectors

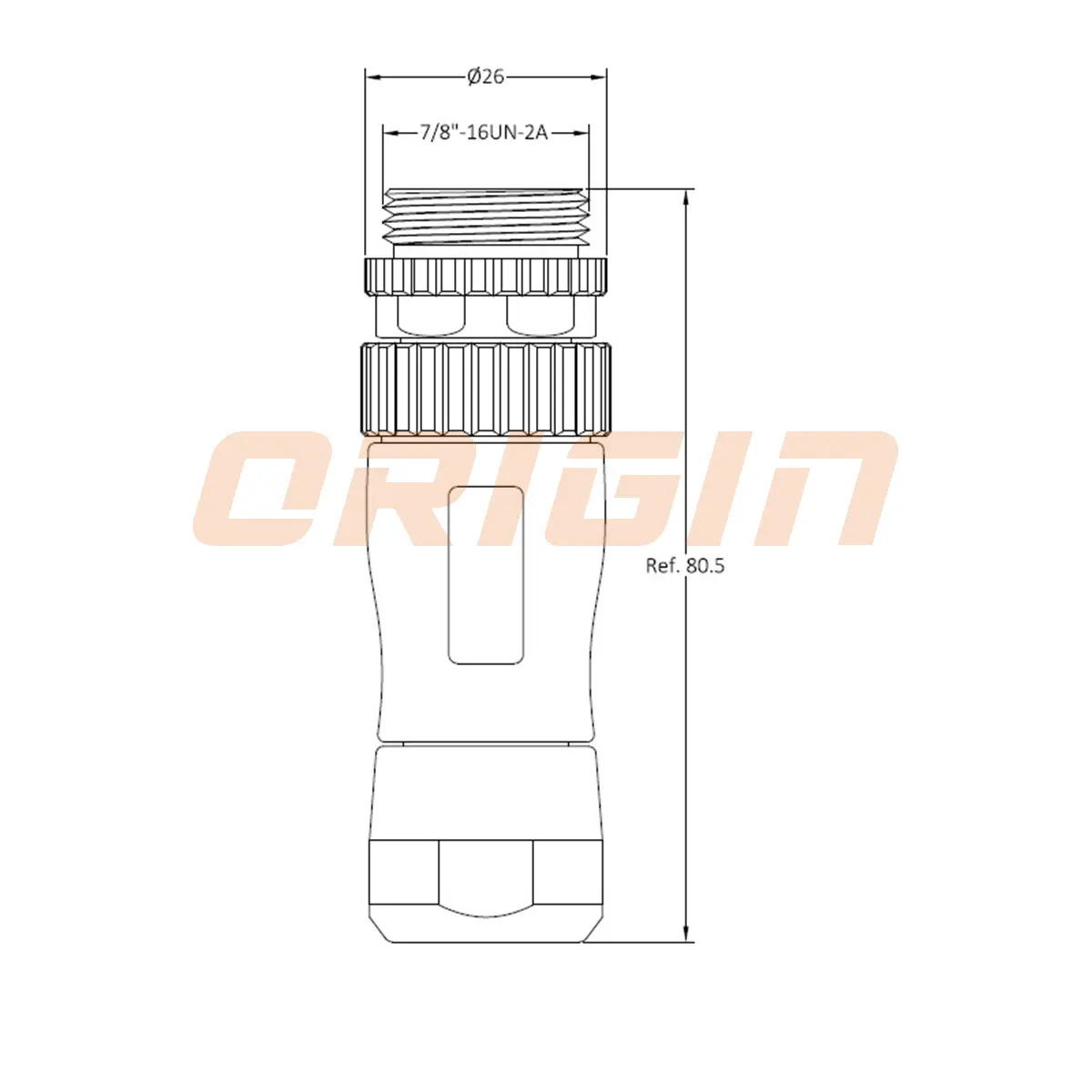

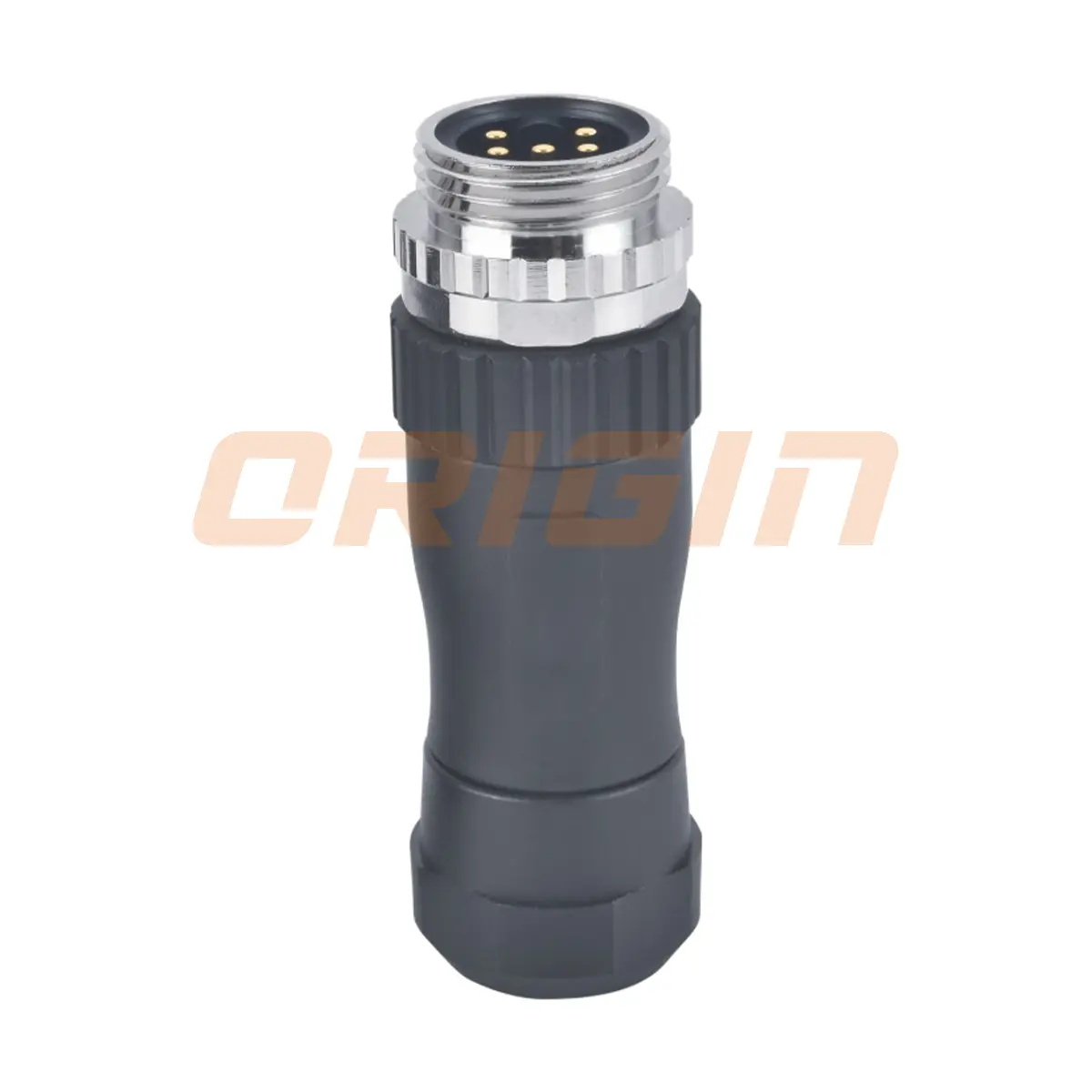

7/8" A-Coding Male Straight Assembly Plug, 3-Pin
PN 780101030100
300V · 12AIP67/IP68
Configure Your Product
Pin
Gender
Orientation
/ Specifications
Technical Details
Mechanical & Connection
Termination
Solder
Shielding
false
Cable OD
6~12mm
Locking System
7/8" - 16UN Screw Lock
Materials & Environmental
Housing Material
PA66
IP Rating
IP67/IP68
Operating Temperature
-25°C to +80°C
Contact Material
Brass
Contact Plating
Gold (Au)
Screw Nut Material
Brass, nickel-plated
O-Ring
FKM / Silicone
